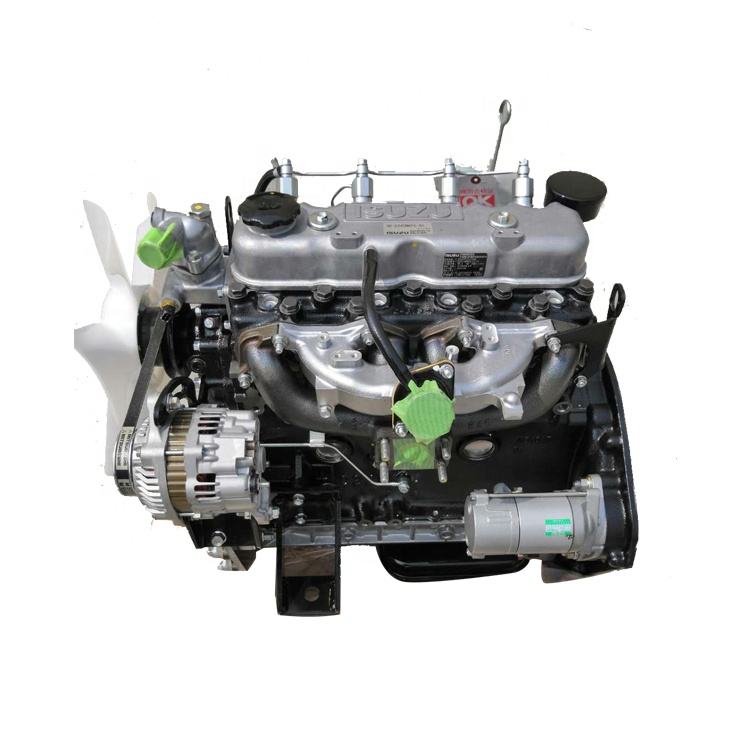

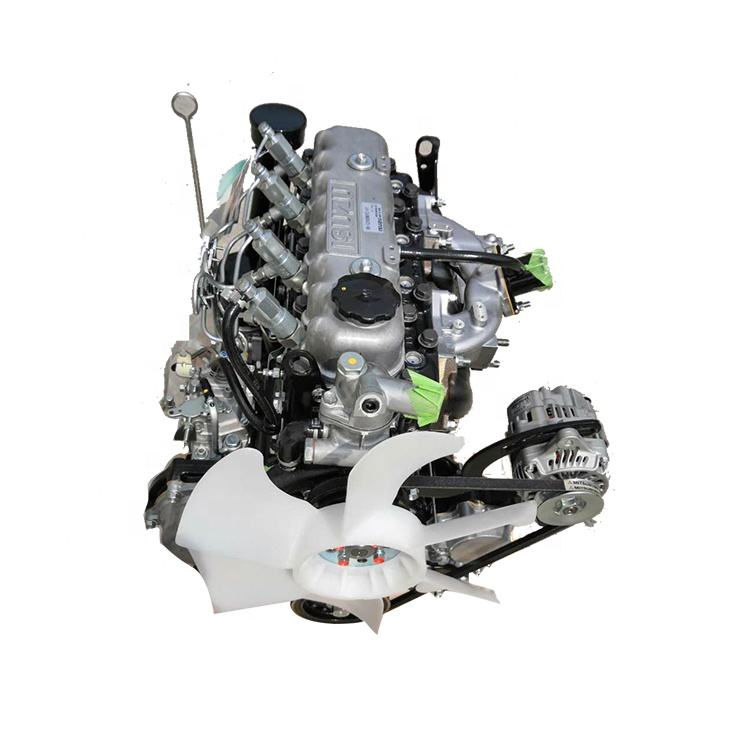

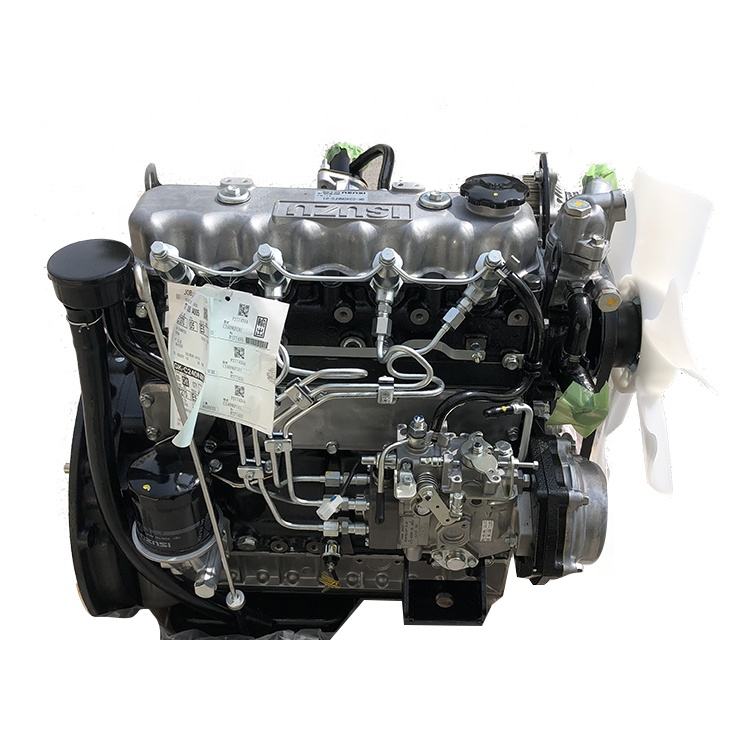

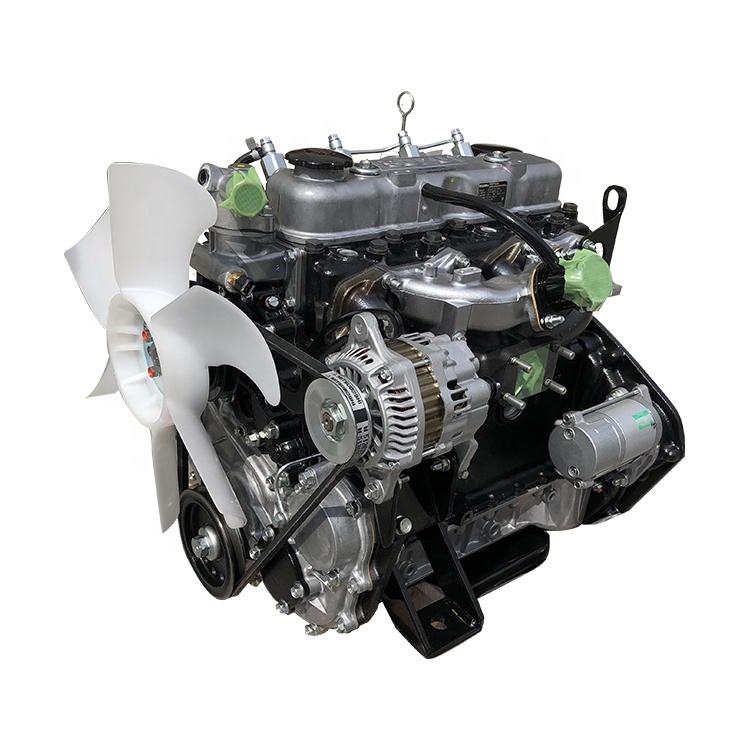

The Isuzu C240 Diesel Engine is a time-tested powerhouse from Isuzu’s renowned C-Series, introduced in the late 1960s and celebrated for over 50 years of dependable performance in demanding environments. This 4-cycle, water-cooled, overhead valve (OHV) engine features indirect injection and a vertical in-line configuration with 4 cylinders, providing robust torque and efficiency for a variety of uses.
Key Specifications:
- Displacement: 2,369 cc (2.4 L)
- Bore x Stroke: 86 mm x 102 mm
- Compression Ratio: 21:1
- Power Output: 35.4 kW (48 hp) at 2,500 rpm (forklift applications); up to 41 kW in industrial setups
- Torque: Approximately 145 Nm at 1,800-2,000 rpm
- Fuel System: Indirect injection with high-pressure solid delivery
- Cooling System: Water-cooled with centrifugal pump
- Dry Weight: 223-252 kg
- Dimensions: Approximately 800 mm (L) x 529 mm (W) x 694 mm (H)
Built with high-quality components like alloy steel cylinder liners and a cast iron block, the C240 excels in reliability, low maintenance, and fuel economy, making it a favorite for forklifts (e.g., TCM and Heli models), light commercial vehicles like the Isuzu Elf, stationary generators, and even marine adaptations (e.g., C240 QD60 delivering around 40-60 hp). Its swirl chamber combustion system ensures smooth operation, while features like sheathed glow plugs aid in cold starts.
Historically, the C240 has powered millions of units worldwide, with production exceeding 2 million by the mid-1980s, and it continues to be valued for its longevity in regions like Asia and for retrofits in emerging markets. As an eco-friendly option, it complies with older emission standards while offering modern rebuild potential through genuine Isuzu parts. Whether for new installations or replacements, this engine delivers proven performance backed by Isuzu’s engineering expertise.
