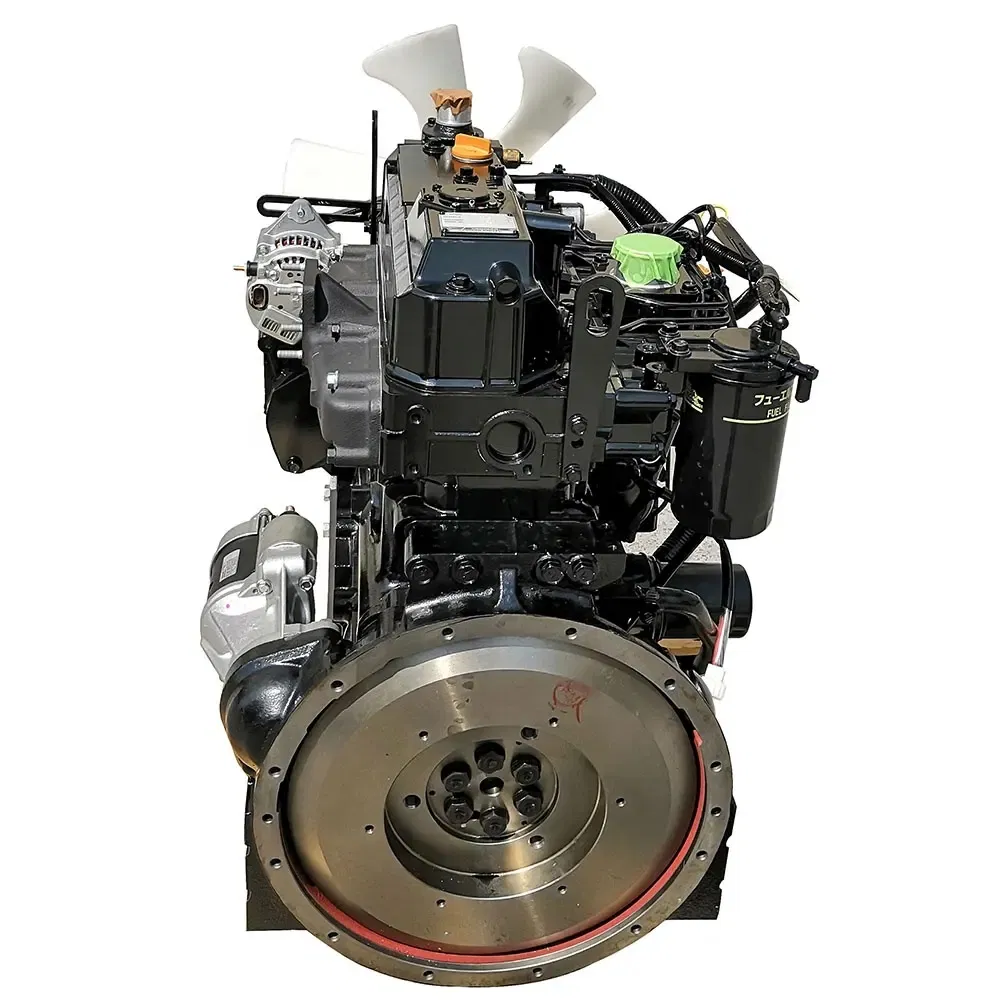

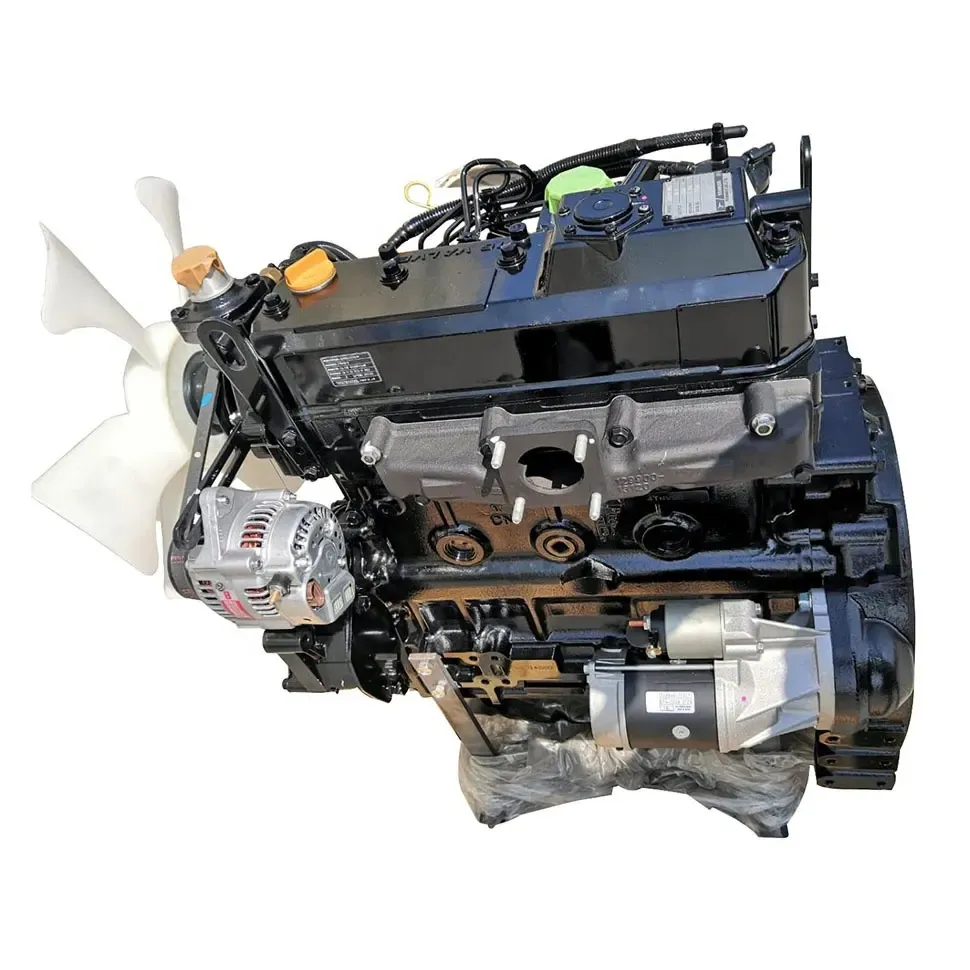

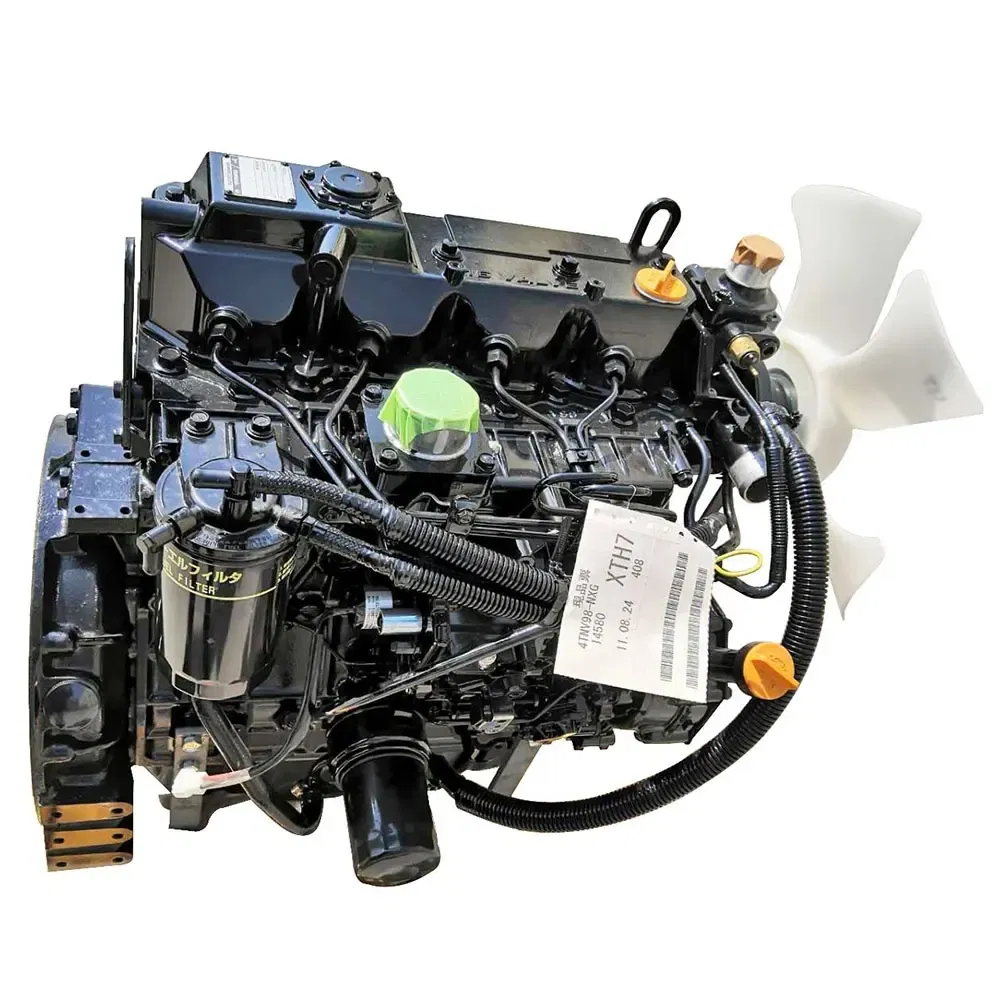

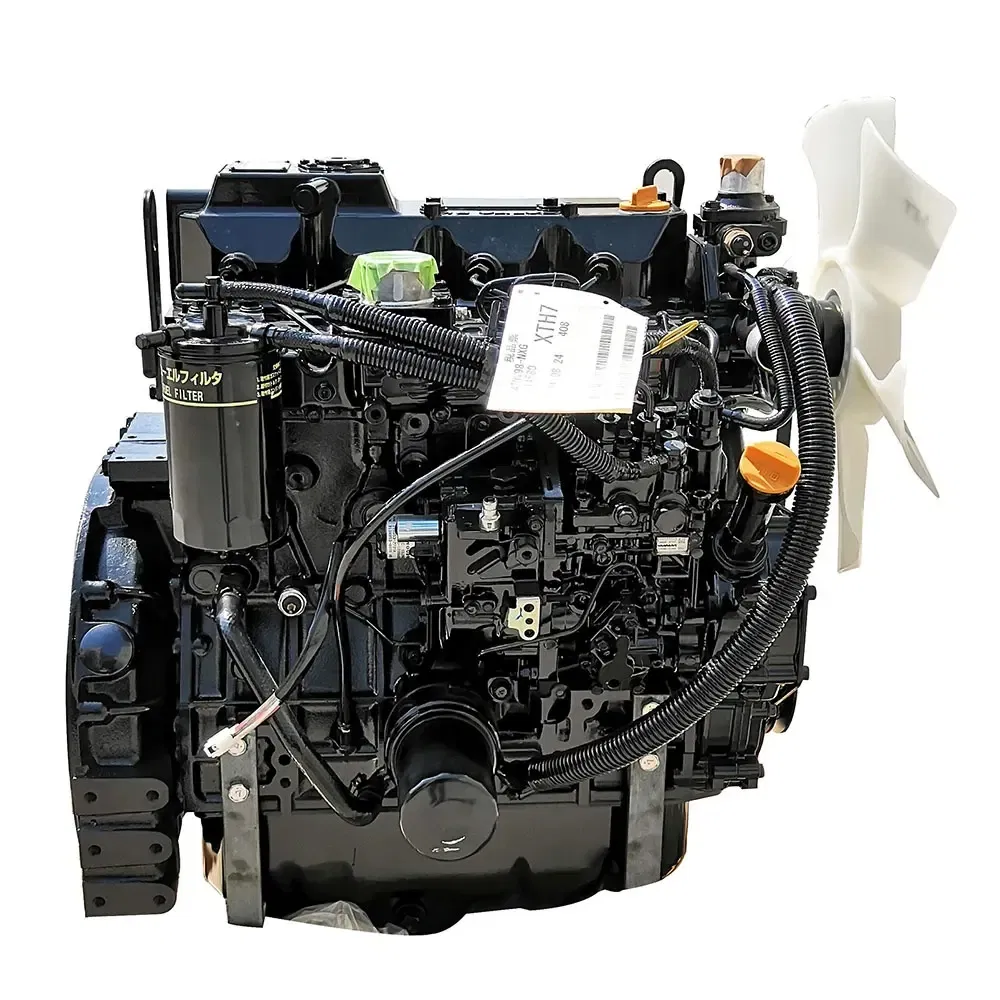

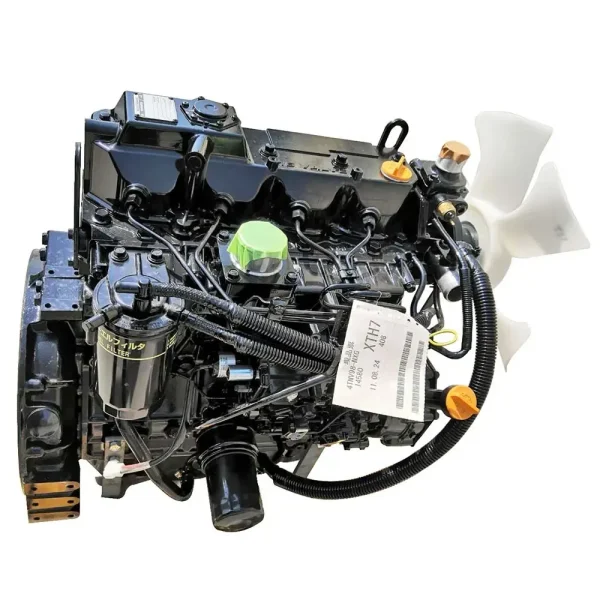

Yanmar 3TNV84T-GGE Turbocharged Diesel Engine

The Yanmar 3TNV84T-GGE is a high-performance, compact turbocharged diesel engine designed for reliability and efficiency in demanding industrial applications. As part of Yanmar’s renowned TNV series, this 4-cycle, inline, water-cooled engine features direct injection combustion for optimal fuel efficiency and reduced emissions, making it an ideal choice for generator sets and heavy machinery.

Key specifications include:

• Engine Type: 3-cylinder, turbocharged diesel with a bore x stroke of 84 mm x 90 mm and a displacement of 1.496 liters.
• Power Output: Rated at 15.8 kW (21.5 PS) at 1500 RPM and 18.8 kW (25.6 PS) at 1800 RPM; continuous rating of 14 kW at 1500 RPM and 16.5 kW at 1800 RPM.
• Fuel Efficiency: Specific fuel consumption of 245 g/kW-h at rated output, ensuring cost-effective operation.
• Dimensions and Weight: Approximately 600 mm (length) x 522 mm (width) x 700 mm (height), with a dry weight of 161 kg for easy integration into various setups.
• Emissions Compliance: Meets secondary construction machinery regulations, with enhancements for cleaner exhaust based on improved combustion and fuel injection systems.
• Additional Features: Centrifugal all-speed governor for stable performance, forced-feed lubrication system with 6.7L oil capacity, and a 12V electrical system including a 1.2 kW starter and 14A generator. It supports gradients up to 35° and includes durable components like a trochoid oil pump and paper element filters.

This engine excels in applications such as 15 kVA generator sets, excavators, and agricultural equipment, offering low noise, vibration, and maintenance needs. Backed by Yanmar’s expertise in industrial engines, it delivers exceptional durability and performance in harsh environments.
